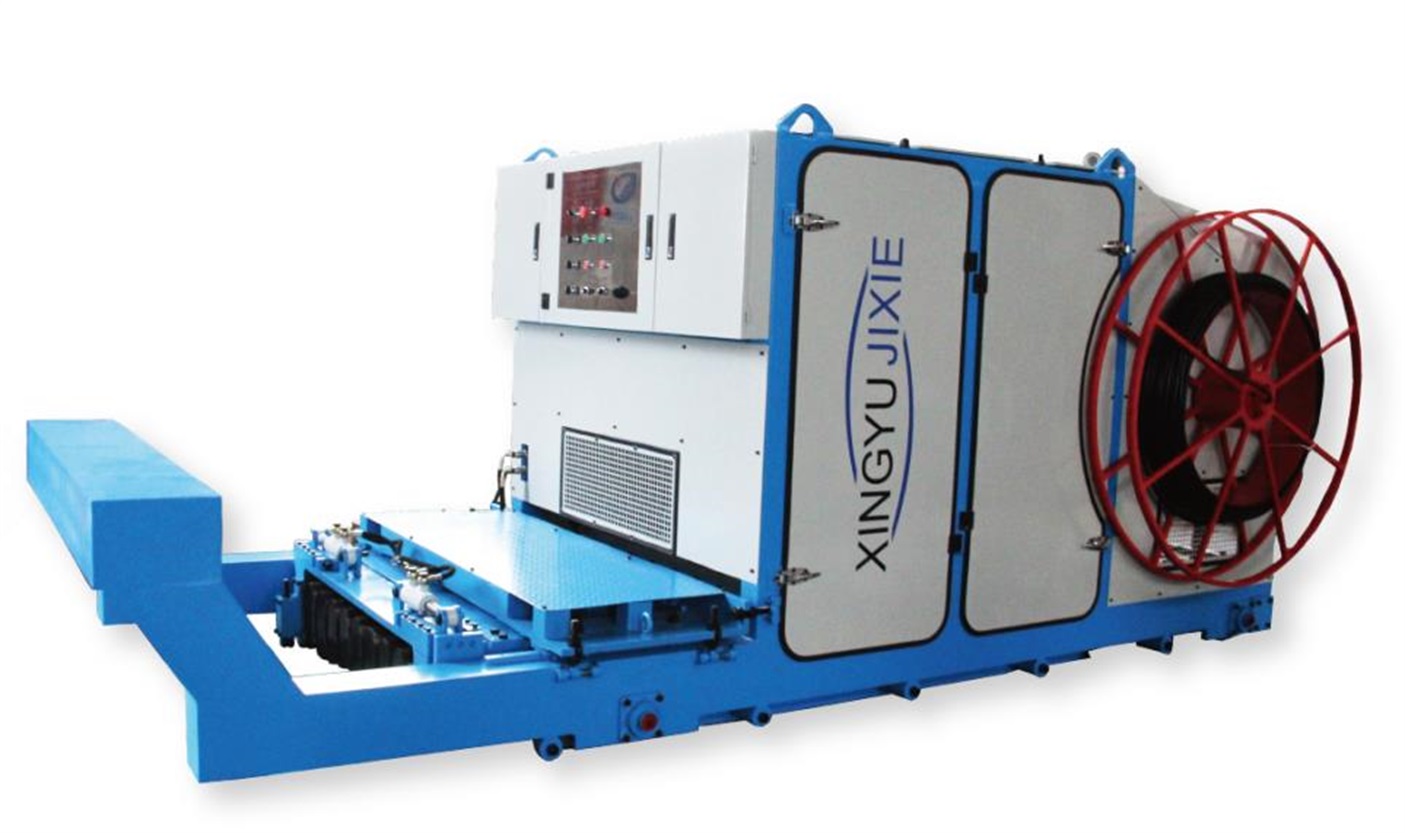

Multi-function Precast Concrete Elements Extruder

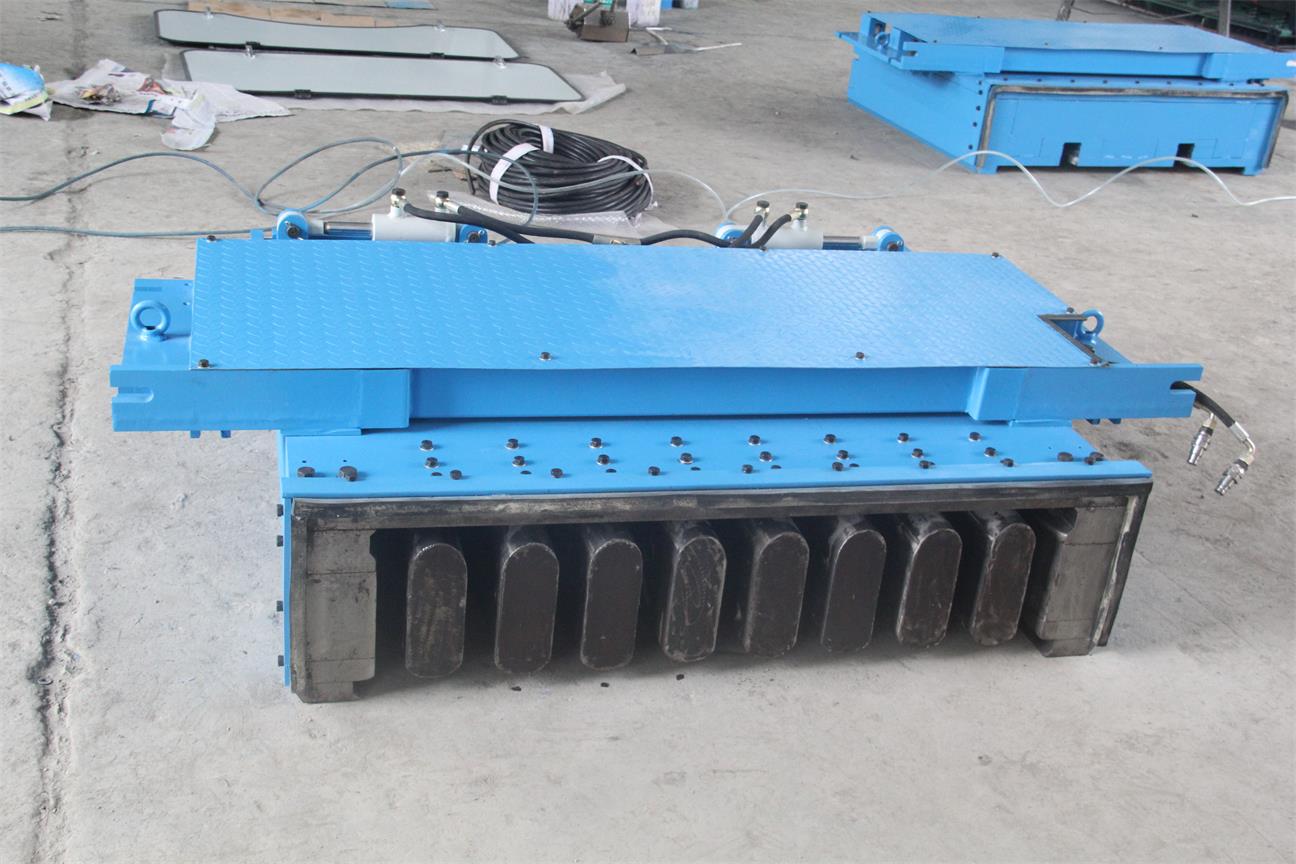

Multi-function precast concrete elements extruder adopts gravity extrusion method. It can produce hollow core slabs by changing mould. It only needs 10 minutes to change mould. The concrete elements have the advantage of smooth surface, precise size, high density structure. It is the preferred update products for concrete elements factory.
Advantages:
1、It adopts gravity extrusion method.

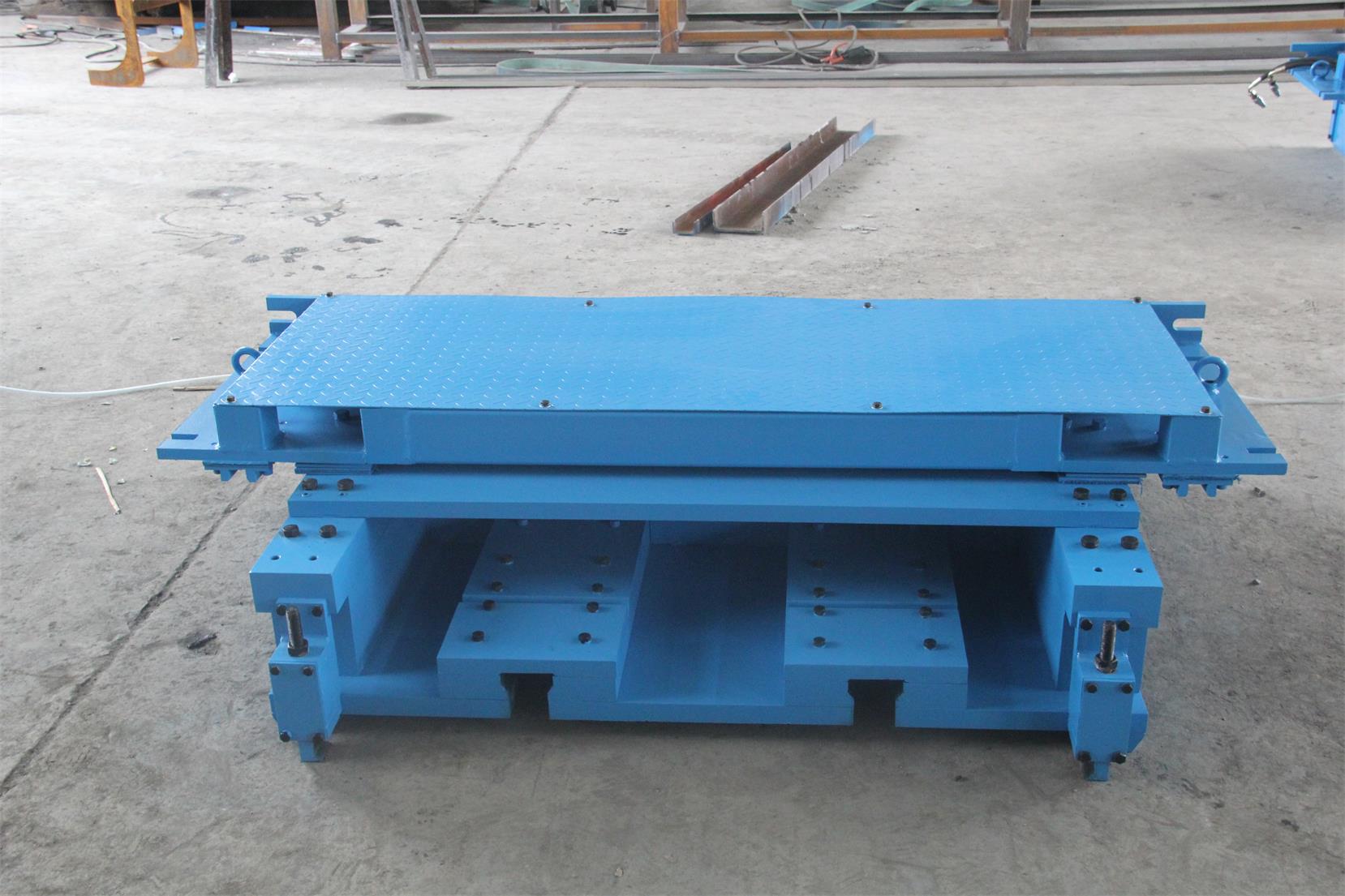

2、Only need 10 minutes to change mould.
3、Use same platform to produce different concrete elements, save area.
Total power:~20kw
Vibrator power:15kw
Moving speed:1.2-1.8m/min
System pressure:7MPa
Fuel tank volume:60L
Hydraulic oil:HM-32/46
Machine weight:6000kg
Machine size:4500x2100x2000
